Unlock edge potential with the power-efficient i.MX 93 OSM module. It features dual-core Cortex®-A55 (up to 1.7GHz) and a Cortex®-M33 for real-time tasks. The integrated 0.5 TOPS Arm Ethos™ -U65 microNPU, coupled with NXP eIQ™, enables efficient and cost-effective high-performance ML applications.
For multimedia, the i.MX 93 integrates a 2-lane MIPI CSI for vision and a 4-lane MIPI DSI supporting crisp 1080p60 displays. Its dual display feature (MIPI DSI/LVDS) and cost-effective 2D PXP GPU make it ideal for HMI applications.
The VEST i.MX 93 family module offers dual Gigabit Ethernet (one Time-Sensitive Network enabled) and versatile connectivity: USB 2.0 OTG, UART, CAN-FD, SPI, and SDIO 3.0, ensuring reliable communication. Security is enhanced by the NXP EdgeLock® Secure Enclave. The module provides comprehensive software support including Yocto/Debian Linux, Zephyr, Matter, NXP Real-Time Edge, and NXP eIQ™.

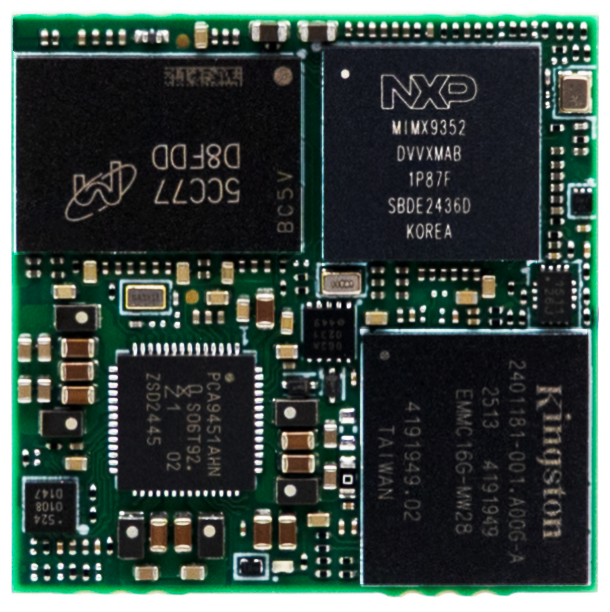

VEST OSM (Small) i.MX 93 SOM, a versatile solution for diverse applications including:
- Industrial Automation, Industry 4.0 and Gateways
- Building Automation and Energy Management
- Smart Home devices and appliances
- Intelligent Machine Vision, Scanning and Robotics
- Smart City; Smart Lighting, Safety and Transport
Key Features
- NXP EdgeLock® secure enclave ensures security and supports compliance with European Cyber Resilience Act. with IoT security standards
- Dual Gigabit Ethernet with one port for Time Sensitive Network (TSN) collaborating with NXP Real Time Edge Software for deterministic control with precise time-synchronization
- Arm Ethos™-U65 microNPU and NXP eIQ™ software development environment for effective AI/ML applications
- Matter protocol for Smart home devices inter-operability and secure connectivity
- Dual screen capability via 4-Lane MIPI DSI (1080p60 resolution) and 4-Lane LVDS
Specifications
CPU
Up to Dual Core Cortex®-A55 @ 1.7Ghz Cortex®-M33 @ 250Mhz
CPU
2D: PXP (Pixel processing pipeline (PXP) engine to support 2D image processing)
NPU
Arm Ethos-U65 0.5 TOPS (Optional)
Memory
Up to 2GB 16-bit, 3.7 GT/s LPDDR4
Storage
16GB (up to 256GB) eMMC 5.1
External Storage
SDIO 3.0
Form Factor
OSM-S V1.1 (30mm x 30mm)
Operating Temperature
Commercial | Industrial (Optional)
Networking
2x 1Gb Ethernet (RGMII) with one having support for TSN
USB
2x USB 2.0 OTG (Controller and PHY)
Serial Communication
2x UART (TX, RX, CTS, RTS), 2x UART (TX, RX), 2x CAN-FD, 2x SPI, SDIO 3.0
PWM
1x
I2C
3 x I2C
GPIO
22x GPIO ( 4x MUX to I2S, 3x MUX to PDM)
Analog & Digital Control
4x ADC
Real Time Clock
Optional
Debugging
JTAG
LED Indicator
1x LED
Power
5V DC +/-5%
Camera
MIPI CSI (2-Lane) with ISI, 8 bpp parallel YUV/RGB Camera*
Display
MIPI DSI (4-Lane), LVDS (4-lane), 24 bpp parallel RGB Display**
Audio
1x I2S
SOC
EdgeLock® Secure Enclave
*When configured for 8bpp parallel YUV/RGB Camera, only 1x CAN FD and 2x UART (TX,RX) are available. 2x SPI, I2S and 1x PWM are not available for use.
**When configured for 24 bpp parallel RGB Display. only 2x UART(TX,RX) are available. 2x SPI, I2S, PWM and 2x UART (TX,RX,CTS,RTS) are not available for use.
Note: Supports either RGB Camera or RGB Display; concurrent operation is not supported.
